Arrow Specs
Shaft Spine:
Shaft GPI:
Insert Name:
Insert Weight Grains:
Nock Name:
Nock Weight Grains:
Arrow Calcs:
TAW:
FOC:
Product Description

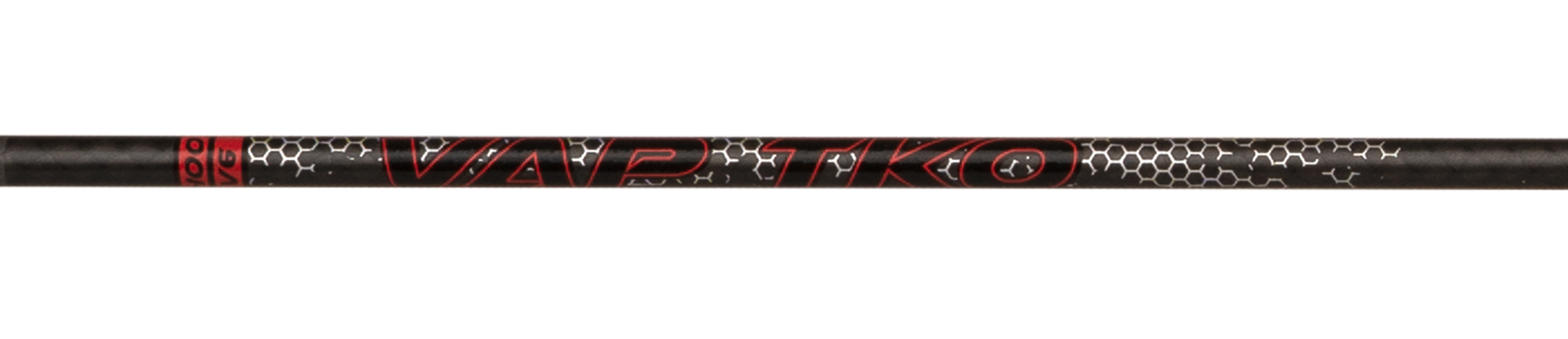

The VAP TKO™ from Victory Archery is the pinnacle of micro diameter hunting arrows, offering unmatched accuracy and the deepest penetration achievable with a bow. This arrow stands as the ultimate choice for long-range hunting, boasting the highest kinetic energy recorded at 100 yards within the Victory arsenal. The integration of MaxxKe™ Technology and an advanced 3K carbon weave significantly reduces torsional deflection – the twisting of the arrow shaft upon launch – enabling quicker stabilization of the arrow shaft, increased retained kinetic energy at long distances, and faster recovery of arrow flight.
Designed with meticulous attention to detail, every VAP TKO™ arrow is digitally spine aligned for heightened accuracy and consistency shot after shot. The micro diameter .166″ shaft, constructed from 100% carbon fiber, ensures maximum speed, penetration, and minimal wind deflection. Each dozen is weight matched to within ±0.5 grains, fostering precise shot consistency and tighter grouping. The advanced nano-ceramic ICE© coating on the arrows not only improves penetration but also simplifies arrow removal from targets. Hand-fletched for optimal vane adhesion and alignment, the VAP TKO™ includes the VAP Shok™ Taper Lock Aluminum Insert and AAE IP Nock #4, enhancing its performance further. Available in spine options of 300 (9.5 gpi), 350 (8.7 gpi), and 400 (7.9 gpi), and featuring a straightness tolerance of ±0.001″ to ±0.006″ depending on the series (Elite, Gamer, or Sport), these arrows cater to serious hunters focused on achieving superior speed, accuracy, and energy transfer.
Product Specs
Spine | Shaft GPI | Inside Diameter (") | Outside Diameter (") |
---|---|---|---|
235 | 11.1 | 0.166 | 0.252 |
300 | 9.5 | 0.166 | 0.242 |
350 | 8.7 | 0.166 | 0.236 |
400 | 7.9 | 0.166 | 0.231 |
500 | 13.1 | 0.166 | 0.265 |
500 | 8.0 | 0.166 | 0.231 |
Select a Spine to build and view details
235 Spine Details
Victory VAP TKO Sport Compatible Inserts
Default Insert (included)
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock Outsert - XXXL (Blood) | 50 |
Alternative Direct Fit Inserts
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock AL/SS Outsert - XXXL (Blood) | 75 | ||
Victory VAP SHOK Taper Lock SS Outsert - XXXL (Blood) | 95 |
Victory VAP TKO Sport Compatible Nocks
Default Nock (included)
Image | Nock | Weight Grains | |
---|---|---|---|
AAE IP4 Nock | 7 |
Buying Options
Site | Link |
---|---|
Check Price |
300 Spine Details
Victory VAP TKO Sport Compatible Inserts
Default Insert (included)
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock Outsert - XL (Black) | 50 |
Alternative Direct Fit Inserts
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock AL/SS Outsert - XL (Black) | 75 | ||
Victory VAP SHOK Taper Lock SS Outsert - XL (Black) | 95 | ||
Victory VAP SHOK Halfout - Black (.241") | 34 |
Victory VAP TKO Sport Compatible Nocks
Default Nock (included)
Image | Nock | Weight Grains | |
---|---|---|---|
AAE IP4 Nock | 7 |
Buying Options
Site | Link |
---|---|
Check Price |
350 Spine Details
Victory VAP TKO Sport Compatible Inserts
Default Insert (included)
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock Outsert - L (Gray) | 50 |
Alternative Direct Fit Inserts
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock AL/SS Outsert - L (Gray) | 75 | ||
Victory VAP SHOK Taper Lock SS Outsert - L (Gray) | 95 | ||
Victory VAP SHOK Halfout - Black (.241") | 34 |
Victory VAP TKO Sport Compatible Nocks
Default Nock (included)
Image | Nock | Weight Grains | |
---|---|---|---|
AAE IP4 Nock | 7 |
Buying Options
Site | Link |
---|---|
Check Price |
400 Spine Details
Victory VAP TKO Sport Compatible Inserts
Default Insert (included)
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock Outsert - M (Green) | 50 |
Alternative Direct Fit Inserts
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Halfout - Gray (.234") | 34 | ||
Victory VAP SHOK Taper Lock AL/SS Outsert - M (Green) | 75 | ||
Victory VAP SHOK Taper Lock SS Outsert - M (Green) | 95 |
Victory VAP TKO Sport Compatible Nocks
Default Nock (included)
Image | Nock | Weight Grains | |
---|---|---|---|
AAE IP4 Nock | 7 |
Buying Options
Site | Link |
---|---|
Check Price |
500 Spine Details
Victory VAP TKO Sport Compatible Inserts
Default Insert (included)
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock Outsert - XXXXXL | 50 |
Alternative Direct Fit Inserts
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock AL/SS Outsert - XXXXXL | 75 | ||
Victory VAP SHOK Taper Lock SS Outsert - XXXXXL | 95 |
Victory VAP TKO Sport Compatible Nocks
Default Nock (included)
Image | Nock | Weight Grains | |
---|---|---|---|
AAE IP4 Nock | 7 |
Buying Options
Site | Link |
---|---|
Check Price |
500 Spine Details
Victory VAP TKO Sport Compatible Inserts
Default Insert (included)
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock Outsert - M (Green) | 50 |
Alternative Direct Fit Inserts
Image | Insert | Weight Grains | |
---|---|---|---|
Victory VAP SHOK Taper Lock AL/SS Outsert - M (Green) | 75 | ||
Victory VAP SHOK Taper Lock SS Outsert - M (Green) | 95 |
Victory VAP TKO Sport Compatible Nocks
Default Nock (included)
Image | Nock | Weight Grains | |
---|---|---|---|
AAE IP4 Nock | 7 |
Buying Options
Site | Link |
---|---|
Check Price |
