Victory VAP TKO Elite

Spine

, , , ,

Brand

Diameter Class

Straightness

0.001

Material

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

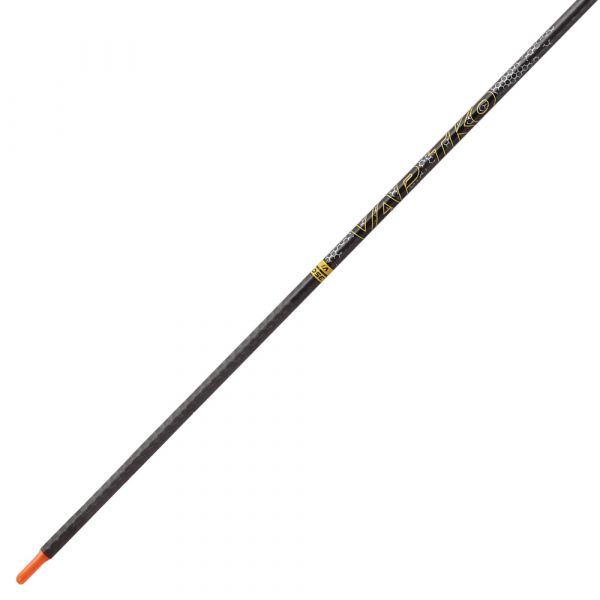

The VAP TKO™ from Victory Archery is the pinnacle of micro diameter hunting arrows, offering unmatched accuracy and the deepest penetration achievable with a bow. This arrow stands as the ultimate choice for long-range hunting, boasting the highest kinetic energy recorded at 100 yards within the Victory arsenal. The integration of MaxxKe™ Technology and an advanced 3K carbon weave significantly reduces torsional deflection – the twisting of the arrow shaft upon launch – enabling quicker stabilization of the arrow shaft, increased retained kinetic energy at long distances, and faster recovery of arrow flight.

Designed with meticulous attention to detail, every VAP TKO™ arrow is digitally spine aligned for heightened accuracy and consistency shot after shot. The micro diameter .166″ shaft, constructed from 100% carbon fiber, ensures maximum speed, penetration, and minimal wind deflection. Each dozen is weight matched to within ±0.5 grains, fostering precise shot consistency and tighter grouping. The advanced nano-ceramic ICE© coating on the arrows not only improves penetration but also simplifies arrow removal from targets. Hand-fletched for optimal vane adhesion and alignment, the VAP TKO™ includes the VAP Shok™ Taper Lock Aluminum Insert and AAE IP Nock #4, enhancing its performance further. Available in spine options of 300 (9.5 gpi), 350 (8.7 gpi), and 400 (7.9 gpi), and featuring a straightness tolerance of ±0.001″ to ±0.006″ depending on the series (Elite, Gamer, or Sport), these arrows cater to serious hunters focused on achieving superior speed, accuracy, and energy transfer.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
235 11.1 0.166 0.252 31
300 9.5 0.166 0.242 31
350 8.7 0.166 0.236 31
400 7.9 0.166 0.231 31
500 13.1 0.166 0.265 31
500 8.0 0.166 0.231 31

Select a Spine to build and view details

235 Spine Details

Victory VAP TKO Elite Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock Outsert - XXXL (Blood) 50
Alternative Direct Fit Inserts
Image Insert Weight Grains

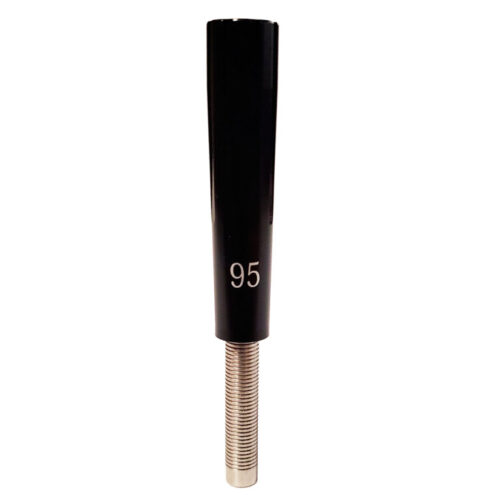

Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock AL/SS Outsert - XXXL (Blood) 75
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock SS Outsert - XXXL (Blood) 95
Victory VAP TKO Elite Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
AAE IP4 Nock AAE IP4 Nock 7
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

300 Spine Details

Victory VAP TKO Elite Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock Outsert - XL (Black) 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Victory VAP SHOK Taper Lock AL/SS Outsert Victory VAP SHOK Taper Lock AL/SS Outsert - XL (Black) 75
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock SS Outsert - XL (Black) 95

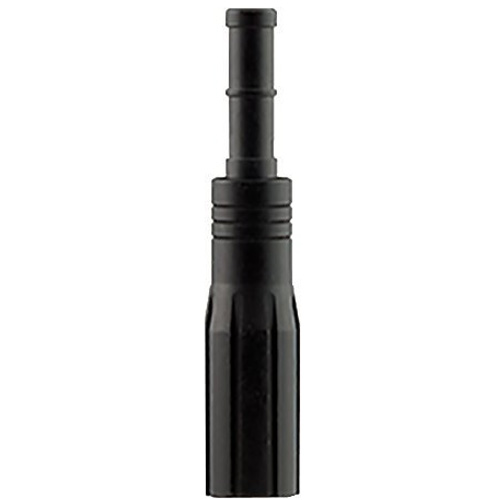

Victory VAP SHOK Halfout Victory VAP SHOK Halfout - Black (.241") 34
Victory VAP TKO Elite Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
AAE IP4 Nock AAE IP4 Nock 7
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

350 Spine Details

Victory VAP TKO Elite Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Victory VAP SHOK Taper Lock AL/SS Outsert Victory VAP SHOK Taper Lock Outsert - L (Gray) 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Victory VAP SHOK Taper Lock AL/SS Outsert Victory VAP SHOK Taper Lock AL/SS Outsert - L (Gray) 75
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock SS Outsert - L (Gray) 95
Victory VAP SHOK Halfout Victory VAP SHOK Halfout - Black (.241") 34
Victory VAP TKO Elite Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
AAE IP4 Nock AAE IP4 Nock 7
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

400 Spine Details

Victory VAP TKO Elite Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock Outsert - M (Green) 50
Alternative Direct Fit Inserts
Image Insert Weight Grains

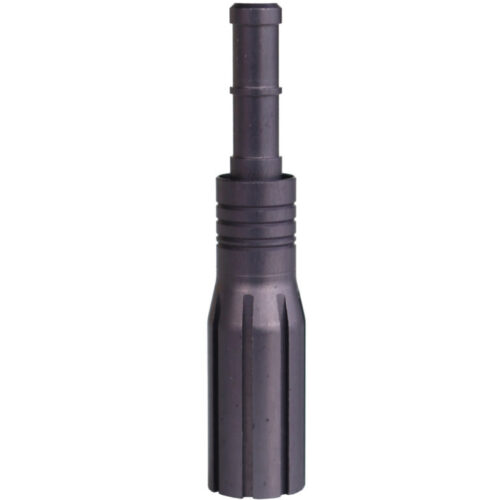

Victory VAP SHOK Halfout Victory VAP SHOK Halfout - Gray (.234") 34
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock AL/SS Outsert - M (Green) 75
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock SS Outsert - M (Green) 95
Victory VAP TKO Elite Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
AAE IP4 Nock AAE IP4 Nock 7
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

500 Spine Details

Victory VAP TKO Elite Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock Outsert - XXXXXL 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock AL/SS Outsert - XXXXXL 75
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock SS Outsert - XXXXXL 95
Victory VAP TKO Elite Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
AAE IP4 Nock AAE IP4 Nock 7
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

500 Spine Details

Victory VAP TKO Elite Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock Outsert - M (Green) 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock AL/SS Outsert - M (Green) 75
Victory VAP SHOK Taper Lock SS Outsert Victory VAP SHOK Taper Lock SS Outsert - M (Green) 95
Victory VAP TKO Elite Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
AAE IP4 Nock AAE IP4 Nock 7
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price

Frequently Asked Questions

What is the Victory VAP TKO Elite inside diameter?
Victory VAP TKO Elite are a 4mm class arrow, with an exact inside diameter of 0.166" for all spine options.
