Victory VAP Sport specs, components, FOC, arrow weight

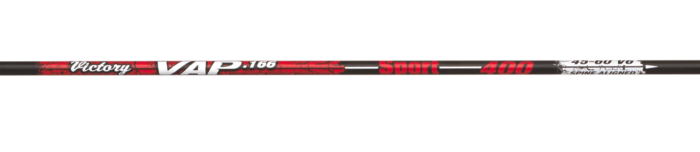

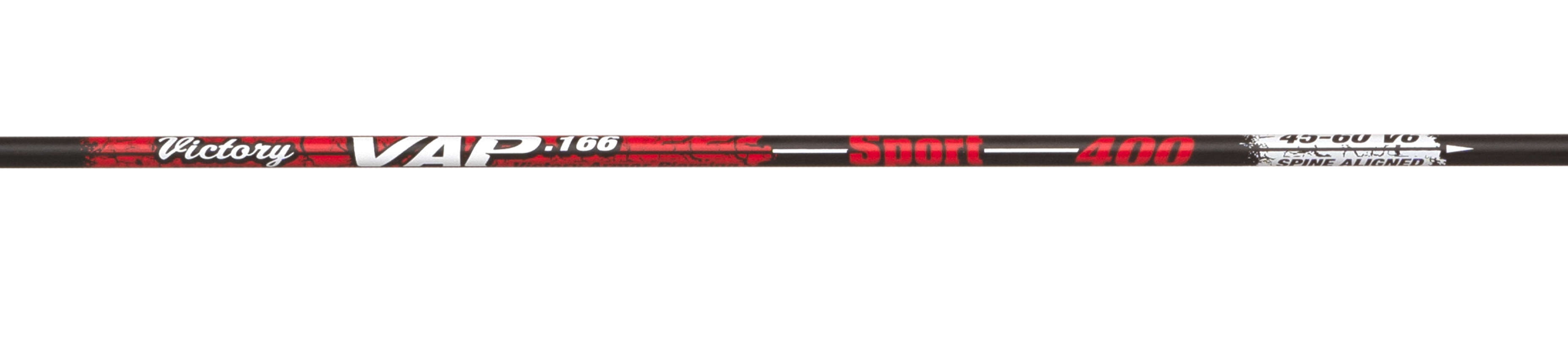

Victory VAP Sport

Spine	200, 250, 300, 350, 400, 450, 500, 600
Brand	Victory
Diameter Class	4mm
Straightness	0.006
Material	Carbon

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

Shaft Length (inches):

> Insert & Point

Insert Name:

Insert Weight Grains:

Point Weight (grains):

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Number of Vanes:

Weight Per Vane (grains):

Wrap Weight (grains):

Arrow Calcs:

TAW:

FOC:

Product Description

The VAP™ Hunting arrow by Victory Archery sets the gold standard in hunting arrow technology with its .166” micro-diameter design. Engineered for exceptional precision and deep penetration, these arrows boast extreme front-of-center (FOC) technology for maximum impact. Constructed from 100% high-modulus carbon fiber, they offer unparalleled speed and reduced wind deflection.

Featuring an advanced 3K carbon weave for reduced torque and faster recovery, each arrow is digitally spine aligned and weight matched to ±0.5 grains for consistent accuracy. The nano ceramic “ICE” coating enhances penetration and simplifies target removal. Available in a range of spines and straightness tolerances, the VAP™ Hunting arrow includes the VAP Shok TL Aluminum Insert and IP Nock #4, making it a superior choice for hunters seeking the ultimate in arrow performance.

Product Specs

Spine	Shaft GPI	Inside Diameter (")	Outside Diameter (")	Full Shaft Length (")
200	11.3	0.166	0.252	31
250	9.8	0.166	0.244	31
300	8.7	0.166	0.237	31
350	7.8	0.166	0.232	31
400	7.2	0.166	0.227	31
450	6.6	0.166	0.223	31
500	6.1	0.166	0.218	31
600	5.5	0.166	0.214	31

Select a Spine to build and view details

200 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - XXXXL	50	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock AL/SS Outsert - XXXXL	75	Select
	Victory VAP SHOK Taper Lock SS Outsert - XXXXL	95	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

250 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - XXL (Tan)	50	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Taper Lock AL/SS Outsert - XXL (Tan)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - XXL (Tan)	95	Select
Victory VAP SHOK Halfout - Black (.241")	34	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

300 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - L (Gray)	50	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Taper Lock AL/SS Outsert - L (Gray)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - L (Gray)	95	Select
Victory VAP SHOK Halfout - Black (.241")	34	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

350 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - M (Green)	50	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Halfout - Gray (.234")	34	Select
Victory VAP SHOK Taper Lock AL/SS Outsert - M (Green)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - M (Green)	95	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

400 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - S (Brown)	50	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Halfout - Green (.229")	34	Select
Victory VAP SHOK Taper Lock AL/SS Outsert - S (Brown)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - S (Brown)	95	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

450 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - S (Brown)	50	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Halfout - Green (.229")	34	Select
Victory VAP SHOK Taper Lock AL/SS Outsert - S (Brown)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - S (Brown)	95	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

500 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Taper Lock Outsert - S (Brown)	50	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Halfout - Green (.229")	34	Select
Victory VAP SHOK Taper Lock AL/SS Outsert - S (Brown)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - S (Brown)	95	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

600 Spine Details

Victory VAP Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory VAP SHOK Halfout - Green (.229")	34	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory VAP SHOK Taper Lock Outsert - S (Brown)	50	Select
Victory VAP SHOK Taper Lock AL/SS Outsert - S (Brown)	75	Select
Victory VAP SHOK Taper Lock SS Outsert - S (Brown)	95	Select

Victory VAP Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP4 Nock	7	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

Frequently Asked Questions

What is the Victory VAP Sport inside diameter?

Victory VAP Sport are a 4mm class arrow, with an exact inside diameter of 0.166" for all spine options.
