Victory RIP XV Sport specs, components, FOC, arrow weight

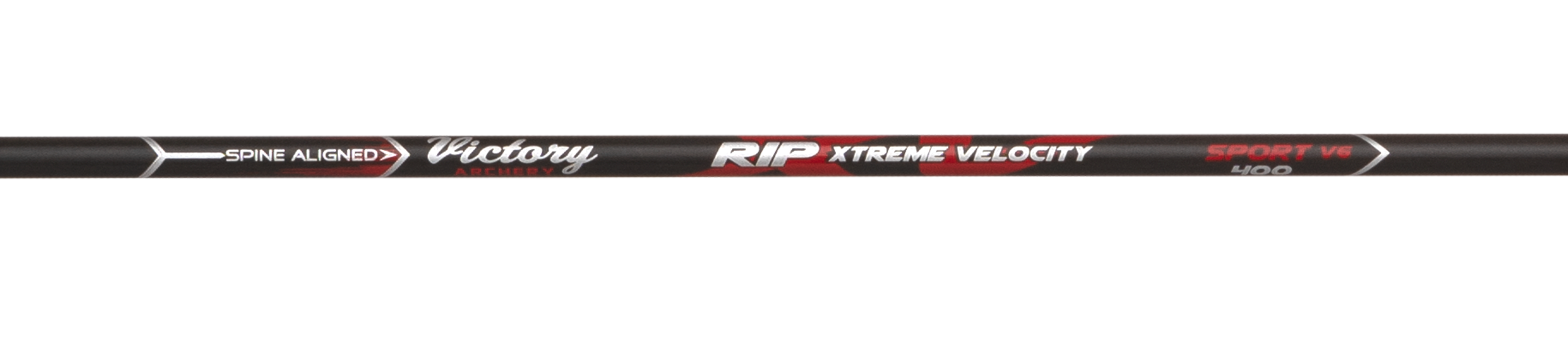

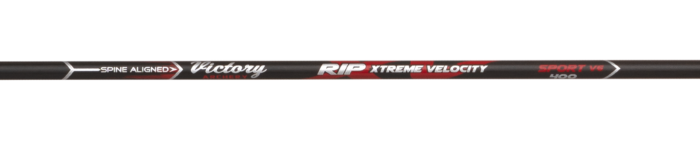

Victory RIP XV Sport

Spine	200, 250, 300, 350, 400, 500
Brand	Victory
Diameter Class	5mm
Straightness	0.006
Material	Carbon

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

Shaft Length (inches):

> Insert & Point

Insert Name:

Insert Weight Grains:

Point Weight (grains):

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Number of Vanes:

Weight Per Vane (grains):

Wrap Weight (grains):

Arrow Calcs:

TAW:

FOC:

Product Description

The RIP XV™ arrow, crafted by the experts at Victory Archery, represents a leap forward in hunting arrow technology, focusing on unmatched speed and precision over long distances. This arrow combines innovative high-modulus carbon formulas to create an ultra-light sub 6 GPI arrow that maintains a flat trajectory even at extreme ranges. Its .204″ micro-diameter shaft minimizes wind deflection, enhancing its speed and accuracy.

Every RIP XV™ arrow is constructed from 100% carbon fiber, ensuring strength and durability while providing maximum penetration with less wind resistance. They are digitally spine aligned for enhanced accuracy, and each dozen is weight matched to ±0.5 grains for consistent performance. The advanced nano ceramic coating not only improves penetration but also makes arrow removal easier. Paired with the SHOK™ aluminum insert for increased front-of-center (FOC) balance, the RIP XV™ is engineered for hunters seeking the highest level of velocity and accuracy in their arrows. Available in spines ranging from 250 (8.0 gpi) to 500 (5.1 gpi), this arrow is designed to meet the demands of serious hunters aiming for long-range performance.

Product Specs

Spine	Shaft GPI	Inside Diameter (")	Outside Diameter (")	Full Shaft Length (")
200	9.3	0.204	0.267	31
250	8.1	0.204	0.260	31
300	7.1	0.204	0.255	31
350	6.4	0.204	0.251	31
400	5.9	0.204	0.247	31
500	5.1	0.204	0.242	31

Select a Spine to build and view details

200 Spine Details

Victory RIP XV Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory RIP SHOK Halfout - Blood (.271")	21	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory RIP SHOK SS Halfout - 271SS	60	Select
Victory RIP SHOK Taper Lock Outsert - L (Gray)	50	Select
Victory RIP SHOK Taper Lock SS Outsert - L (Gray)	75	Select

Victory RIP XV Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP5 Nock	8.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

250 Spine Details

Victory RIP XV Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory RIP SHOK Halfout - Gray (.264")	21	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory RIP SHOK SS Halfout - 264SS	60	Select
Victory RIP SHOK Taper Lock Outsert - M (Green)	50	Select
Victory RIP SHOK Taper Lock SS Outsert - M (Green)	75	Select

Victory RIP XV Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP5 Nock	8.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

300 Spine Details

Victory RIP XV Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory RIP SHOK Halfout - Green (.260")	21	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory RIP SHOK SS Halfout - 260SS	60	Select
Victory RIP SHOK Taper Lock Outsert - S (Brown)	50	Select
Victory RIP SHOK Taper Lock SS Outsert - S (Brown)	75	Select

Victory RIP XV Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP5 Nock	8.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

350 Spine Details

Victory RIP XV Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory RIP SHOK Halfout - Green (.260")	21	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory RIP SHOK SS Halfout - 260SS	60	Select
Victory RIP SHOK Taper Lock Outsert - S (Brown)	50	Select
Victory RIP SHOK Taper Lock SS Outsert - S (Brown)	75	Select

Victory RIP XV Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP5 Nock	8.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

400 Spine Details

Victory RIP XV Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory RIP SHOK Halfout - Green (.260")	21	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory RIP SHOK SS Halfout - 260SS	60	Select
Victory RIP SHOK Taper Lock Outsert - S (Brown)	50	Select
Victory RIP SHOK Taper Lock SS Outsert - S (Brown)	75	Select

Victory RIP XV Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP5 Nock	8.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

500 Spine Details

Victory RIP XV Sport Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Victory RIP SHOK Halfout - Green (.260")	21	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Victory RIP SHOK SS Halfout - 260SS	60	Select
Victory RIP SHOK Taper Lock Outsert - S (Brown)	50	Select
Victory RIP SHOK Taper Lock SS Outsert - S (Brown)	75	Select

Victory RIP XV Sport Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	AAE IP5 Nock	8.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

Frequently Asked Questions

What is the Victory RIP XV Sport inside diameter?

Victory RIP XV Sport are a 5mm class arrow, with an exact inside diameter of 0.204" for all spine options.
