Gold Tip Traditional XT specs, components, FOC, arrow weight

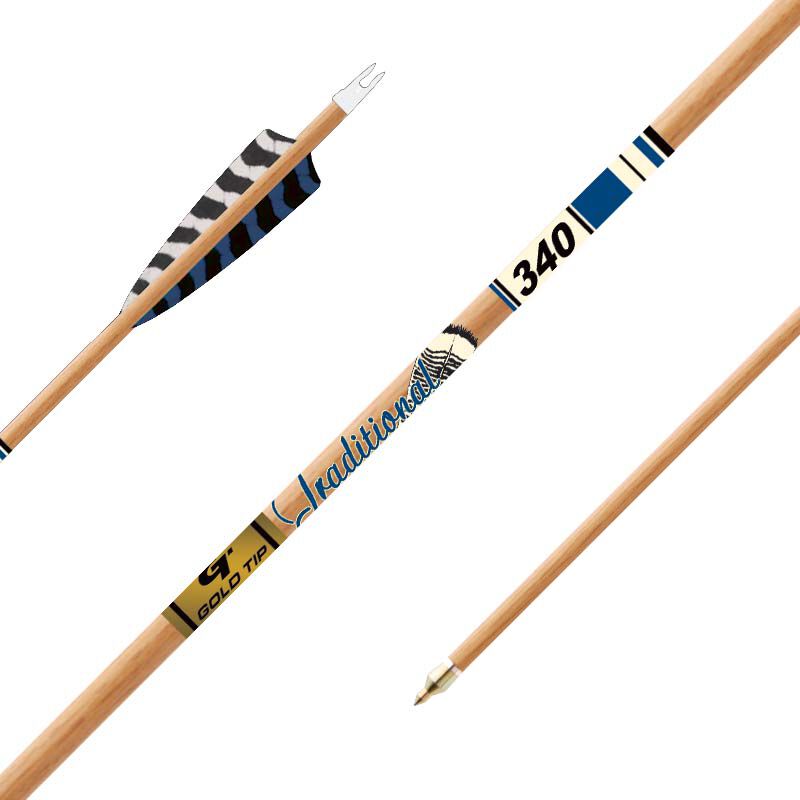

Gold Tip Traditional XT

Spine	340, 400, 500, 600
Brand	Gold Tip
Diameter Class	6.5mm
Straightness	0.003
Material	Carbon

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

Shaft Length (inches):

> Insert & Point

Insert Name:

Insert Weight Grains:

Point Weight (grains):

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Number of Vanes:

Weight Per Vane (grains):

Wrap Weight (grains):

Arrow Calcs:

TAW:

FOC:

Product Description

Gold Tip®’s Traditional Series arrows offer archery enthusiasts the best of both worlds: the timeless beauty of classic wood-grained cedar paired with the unmatched performance and durability of 100% carbon construction. These arrows are designed to meet the demands of traditional archers who do not want to compromise on modern technology and performance.

Featuring a straightness tolerance of +/- .003″ (XT) or +/- .006″ (Traditional) and a weight tolerance of +/- 2 grains, the Traditional Series ensures consistent performance and accuracy. Each arrow comes equipped with GT Series nocks and Accu-Lite inserts, enhancing the overall shooting experience. Available in a range of spines from 600 to 340, these arrows cater to a wide spectrum of draw weights and shooting styles, making them a perfect choice for archers who appreciate the aesthetic of traditional wood with the reliability and strength of carbon.

Product Specs

Spine	Shaft GPI	Inside Diameter (")	Outside Diameter (")	Full Shaft Length (")
340	10.5	0.246	0.308	32
400	9.3	0.246	0.302	32
500	8.6	0.246	0.300	32
600	7.8	0.246	0.295	30

Select a Spine to build and view details

340

400

500

600

340 Spine Details

Gold Tip Traditional XT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Traditional XT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

400 Spine Details

Gold Tip Traditional XT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Traditional XT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

500 Spine Details

Gold Tip Traditional XT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Traditional XT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

600 Spine Details

Gold Tip Traditional XT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Gold Tip Accu-lite .246 Insert - Standard	12.1	Select

Alternative Direct Fit Inserts

Image	Insert	Weight Grains
	Gold Tip .246 Aluminum 50gr Insert	50	Select
	Gold Tip .246 Brass Insert	100	Select

Gold Tip Traditional XT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Gold Tip GT Nock	12.2	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

Frequently Asked Questions

What is the Gold Tip Traditional XT inside diameter?

Gold Tip Traditional XT are a 6.5mm class arrow, with an exact inside diameter of 0.246" for all spine options.
