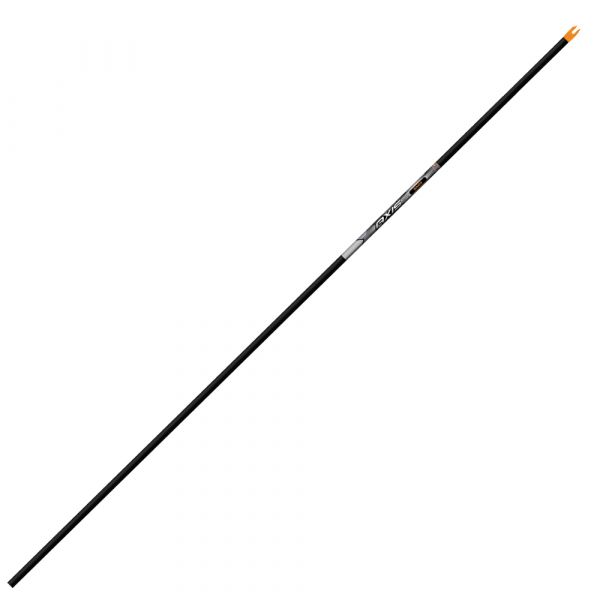

Easton Axis 5mm SPT

Spine	200, 260, 300, 340, 400, 500, 600, 700
Brand	Easton
Diameter Class	5mm
Straightness	0.006
Material	Carbon

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

Shaft Length (inches):

> Insert & Point

Insert Name:

Insert Weight Grains:

Point Weight (grains):

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Number of Vanes:

Weight Per Vane (grains):

Wrap Weight (grains):

Arrow Calcs:

TAW:

FOC:

Product Description

The Easton AXIS series represents the pinnacle of small-diameter carbon arrow technology, engineered for hunters and archers who demand the highest levels of penetration, speed, and accuracy. Built with Easton’s legendary 100% carbon technology, these arrows offer unmatched durability and straightness retention. The entire AXIS lineup is designed to deliver deep penetration thanks to their micro-diameter profile, which reduces friction and wind drift, ensuring that broadheads hit the mark more consistently.

The AXIS 5mm arrows at +/- .003″ are the foundation of the series, balancing speed, penetration, and durability. The AXIS Match Grade arrows elevate precision to the highest level with a match-grade straightness of ±.001”, making them the choice for hunters and competitive archers seeking the ultimate in performance and consistency. The AXIS Sport (SPT) version is designed for archers with shorter draw lengths or lighter-poundage bows, offering a more affordable entry into the AXIS family without sacrificing performance. They’re compatible with all AXIS components, making them versatile for various setups.

Each variant in the AXIS line is designed with specific features to enhance field performance, from the standard model’s broad utility to the Match Grade’s elite accuracy and the Sport’s value-oriented design for those with specific draw and poundage needs. The AXIS series ensures that there’s a high-performance, small-diameter arrow for every archer’s requirements.

Product Specs

Spine	Shaft GPI	Inside Diameter (")	Outside Diameter (")	Full Shaft Length (")
200	12.0	0.204	0.286	34
260	11.5	0.204	0.280	34
300	10.7	0.204	0.275	32.5
340	9.5	0.204	0.267	32
400	9.0	0.204	0.264	31.5
500	8.1	0.204	0.258	31
600	7.2	0.204	0.253	30.5
700	6.1	0.204	0.245	31.5

Select a Spine to build and view details

200 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #2	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #2	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

260 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #2	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #2	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

300 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #2	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #2	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

340 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #2	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #2	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

400 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #2	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #2	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

500 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #1	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #1	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

600 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #1	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm Steel Halfout - #1	75	Select
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

700 Spine Details

Easton Axis 5mm SPT Compatible Inserts

Default Insert (included)

Image	Insert	Weight Grains
	Easton 5mm Aluminium Halfout - #1	25	Select

Alternative Direct Fit Inserts

Insert	Weight Grains
Easton 5mm HIT Insert	16	Select
Easton 5mm Brass HIT Break-off Insert	75	Select
Easton 5mm Deep Six Steel RPS Inserts	25	Select

Easton Axis 5mm SPT Compatible Nocks

Default Nock (included)

Image	Nock	Weight Grains
	Easton 5MM X Nock	9	Select

Buying Options

		Services Offered
Site	Link	Cut to Size	Component Install	Wrap and Fletch
	Check Price

Frequently Asked Questions

What is the Easton Axis 5mm SPT inside diameter?

Easton Axis 5mm SPT are a 5mm class arrow, with an exact inside diameter of 0.204" for all spine options.
