Easton Axis 4mm

Easton Axis 4mm

Spine

, , ,

Brand

Diameter Class

Straightness

0.003
Material

Build & Calculate FOC

Arrow Specs

> Shaft

Shaft Spine:

Shaft GPI:

> Insert & Point

Insert Name:

Insert Weight Grains:

> Nock

Nock Name:

Nock Weight Grains:

> Fletch & Wrap

Arrow Calcs:

TAW:

FOC:

Product Description

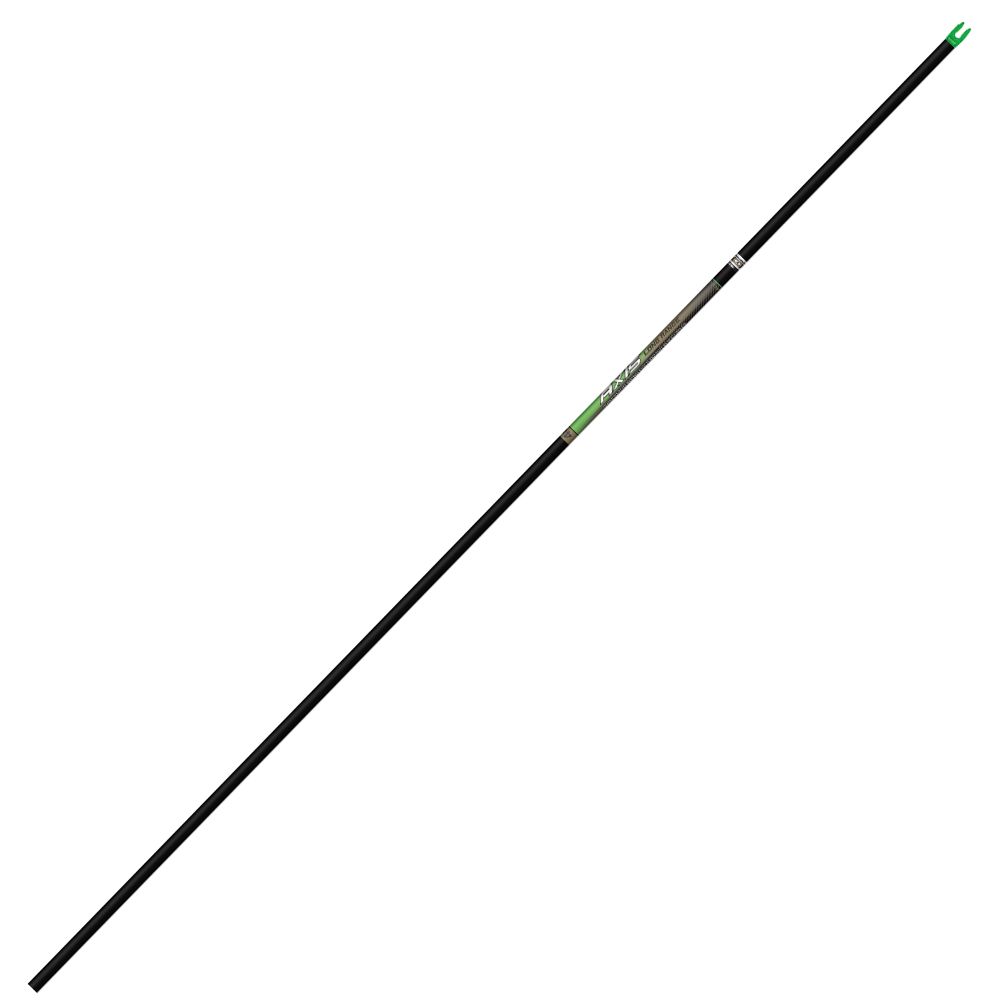

The Easton AXIS 4MM Long Range arrow introduces a blend of speed and precision, now available in a micro-diameter format. Designed with a 100% carbon-fiber construction and incorporating Easton’s innovative Aluminum point outsert technology, these arrows promise enhanced velocity, strength, and accuracy at long distances. They come equipped with 4MM Microlite nocks pre-installed, ensuring reduced friction during flight for optimized Front Of Center (FOC), improved target penetration, and precision. Available in four popular hunting spine sizes (250, 300, 340, and 400), each pack includes aluminum point outserts and caters to hunters seeking reduced wind drift and superior performance. Crafted in the USA, these arrows offer a straightness tolerance of +/- .003″, with a Match Grade option available at +/- .001″, ensuring the highest standards of quality and performance for long-range hunting scenarios.

Product Specs

Spine Shaft GPI Inside Diameter (") Outside Diameter (") Full Shaft Length (")
250 9.8 0.165 0.244 33
300 9.3 0.165 0.241 32.5
340 8.3 0.165 0.234 32
400 7.6 0.165 0.229 31.5

Select a Spine to build and view details

250 Spine Details

Easton Axis 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #4 50
Alternative Direct Fit Inserts
Image Insert Weight Grains

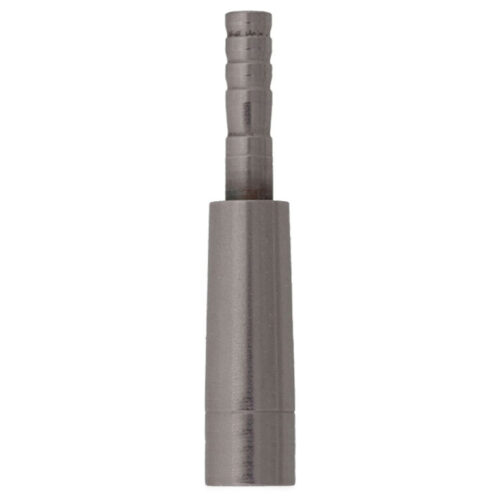

Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #4 95

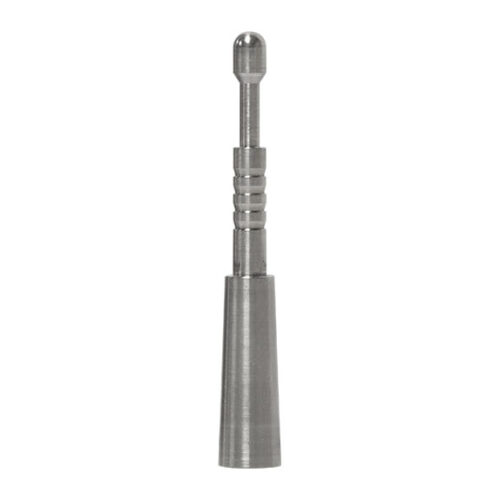

Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #4 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #4 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #4 100
Easton 4mm 150gr Match Grade Halfout Easton 4mm 150gr Match Grade Halfout - #4 150

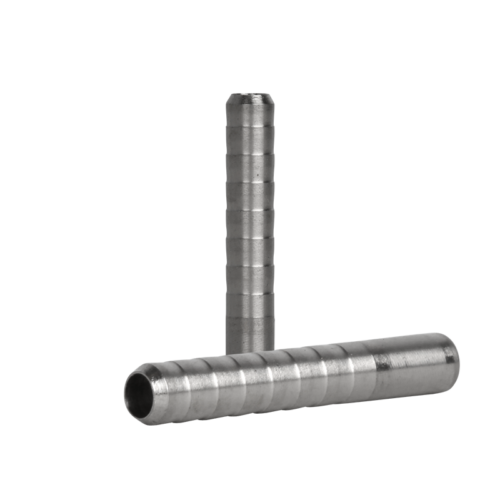

Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton Axis 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains

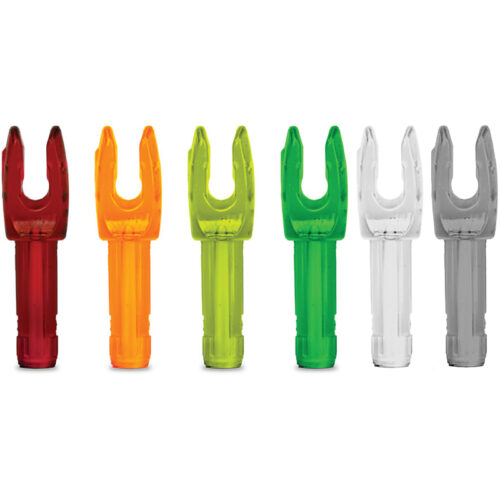

Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

300 Spine Details

Easton Axis 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #3 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #3 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #3 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #3 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #3 100
Easton 4mm 150gr Match Grade Halfout Easton 4mm 150gr Match Grade Halfout - #3 150
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton Axis 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

340 Spine Details

Easton Axis 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #2 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #2 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #2 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #2 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #2 100
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton Axis 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

400 Spine Details

Easton Axis 4mm Compatible Inserts
Default Insert (included)
Image Insert Weight Grains
Easton 4mm Aluminium Halfout Easton 4mm Aluminium Halfout - #1 50
Alternative Direct Fit Inserts
Image Insert Weight Grains
Easton 4mm Steel Halfout Easton 4mm Steel Halfout - #1 95
Easton 4mm Titanium Halfout Easton 4mm Titanium Halfout 55
Easton 4mm 55gr Match Grade Halfout Easton 4mm 55gr Match Grade Halfout - #1 55
Easton 4mm 75gr Match Grade Halfout Easton 4mm 75gr Match Grade Halfout - #1 75
Easton 4mm 100gr Match Grade Halfout Easton 4mm 100gr Match Grade Halfout - #1 100
Easton 4mm Deep-Six Steel Insert Easton 4mm Deep-Six Steel Insert 20
Easton Axis 4mm Compatible Nocks
Default Nock (included)
Image Nock Weight Grains
Easton 4MM Microlite Nock Easton 4MM Microlite Nock 6
Buying Options
Services Offered
Site Link Cut to Size Component Install Wrap and Fletch
Check Price
Check Price

Frequently Asked Questions

What is the Easton Axis 4mm inside diameter?
Easton Axis 4mm are a 4mm class arrow, with an exact inside diameter of 0.165" for all spine options.
